Administrating Condor

Alan De Smet
Condor Project
Computer Sciences Department
University of Wisconsin-Madison
condor-admin@cs.wisc.edu

Condor Daemons
- Condor Daemons
  - condor_master - controls everything else
    - condor_procd - tracks processes managed by Condor.
  - condor_startd - executing jobs
    - condor_starter - helper for starting jobs
  - condor_schedd - submitting jobs
    - condor_shadow - submit-side helper
  - condor_collector - Collects system information; only on Central Manager
  - condor_negotiator - Assigns jobs to machines; only on Central Manager
  - You only have to run the daemons for the services you need to provide
  - DAEMON_LIST is a comma seperated list of daemons to start
    - DAEMON_LIST = MASTER, SCHEDD, STARTD
- condor_master
  - You start it, it starts up the other Condor daemons
  - If a daemon exits unexpectedly, restarts deamon and emails administrator
  - If a daemon binary is updated (timestamp changed), restarts the daemon
  - Provides access to many remote administration commands:
    - condor_reconfig, condor_restart, condor_off, condor_on, etc.
  - Default server for many other commands:
    - condor_config_val, etc.
  - Periodically runs condor_preen to clean up any files Condor might have left on the machine
    - Emails you notification
    - Backup behavior, the other daemons clean up after themselves
  - condor_procd
    - Tracks processes
    - Automatically started as needed, no DEAMON_LIST entry is necessary
    - condor_procd is part of ongoing privilege separation security enhancements.
- condor_startd
  - Represents a machine willing to run jobs to the Condor pool
  - Should be run on any machine you want to run jobs
  - Enforces the wishes of the machine owner (the owner's "policy")
  - Starts, stops, suspends jobs
  - Spawns the appropriate condor_starter, depending on the type of job
  - Provides other administrative commands (for example, condor_vacate)
- condor_starter
  - Spawned by the condor_startd
    - Don't add to DAEMON_LIST
  - Handles all the details of starting and managing the job
    - Transfer job's binary to execute machine
    - Send back exit status
    - Etc.
  - One per running job. The default configuration is willing to run one job per CPU.
- condor_schedd
  - Represents jobs to the Condor pool
  - Maintains persistent queue of jobs
    - Queue is not strictly first-in-first-out (priority based)
    - Each machine running condor_schedd maintains its own independent queue
  - Should be run on any machine you want to submit jobs from
  - Responsible for contacting available machines and spawning waiting jobs
    - When told to by condor_negotiator
  - Services most user commands:
    - condor_submit, condor_rm, condor_q, condor_hold, condor_release
- condor_shadow
  - Represents job on the submit machine
  - Spawned by condor_schedd
    - Don't add to DAEMON_LIST
  - Services requests from standard universe jobs for remote system calls
    - including all file I/O
  - Makes decisions on behalf of the job
    - for example: where to store the checkpoint file
  - condor_shadow Impact
    - One condor_shadow running on submit machine for each actively running Condor job
    - Minimal load on submit machine
      - Usually blocked waiting for requests from the job or doing I/O
      - Relatively small memory footprint
      - Can throttle; see MAX_JOBS_RUNNING and SHADOW_RENICE_INCREMENT in the manual.
- condor_collector
  - Collects information from all other Condor daemons in the pool
  - Each daemon sends a periodic update called a ClassAd to the collector
  - Old ads are removed if they time out without an update
  - Services queries for information:
    - Queries from other Condor daemons
    - Queries from users (condor_status)
- condor_negotiator
  - Performs matchmaking in Condor
    - Pulls list of available machines and job queues from condor_collector
    - Matches jobs with available machines
    - Both the job and the machine must satisfy each other's requirements (2-way matching)
  - Handles user priorities
- Central Manager
  - The Central Manager is the machine running the collector and negotiator
    - DAEMON_LIST = MASTER, COLLECTOR, NEGOTIATOR
  - "A Condor pool" typically means all machines reporting to a given central manager.
    - CONDOR_HOST = centralmanager.example.com

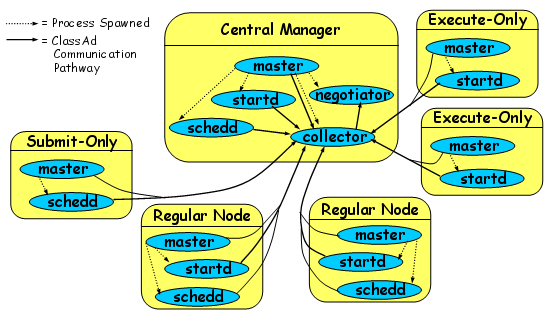

- Typical Condor Pool
  - Here we have a small pool with six machines. Like most Condor pools, there is a Central Manager, identifiable by the presence of the condor_negotiator and condor_collector. In this case the Central Manger is also allowed to run jobs (presence of condor_startd), and jobs can be submitted from the Central Manager (presence of condor_schedd)
  - This pool has one node only useful for submitting jobs (it is only running the condor_schedd), and two nodes only used for executing jobs (only running condor_startd). There are two nodes both able to submit and execute jobs (both startd and schedd)
- Job Startup
  - 1. Startd sends collector ClassAd describing itself. (The Schedd does as well, but it has nothing interesting to say yet.)
  - 2. The user calls condor_submit to submit a job. The job is handed off to the schedd and condor_submit returns.
  - 3. The schedd alerts the collector that it now has a job waiting.
  - 4. The negotiator asks the collector for a list machines able to run jobs and schedd queues with waiting jobs.
  - 5. The negotiator contacts the schedd to learn about the waiting job.
  - 6. The negotiator matches the waiting job with the waiting machine.
  - 7. The negotiator alerts the schedd and the startd that there is a match.
  - 8. The schedd contacts the startd to claim the match.
  - 9. The schedd starts a shadow to monitor the job.
  - 10. The startd starts a starter to start the job.
  - 11. The starter and the shadow contact each other.
  - 12. The starter starts the job.
  - 13. If the job is using the Condor syscall library (typically through being condor_compiled), it will contact the shadow to access necessary files.
Configuration Files
- Configuration Files
  - Multiple files concatenated
    - Later definitions overwrite previous ones
  - Order of files:
    - Global configuration file - this is the only required file
    - Local config files, shared configuration files
    - Global and Local Root configuration file
- Global Configuration File
  - Found either in file pointed to with the CONDOR_CONFIG environment variable, /etc/condor/condor_config, or ~condor/condor_config
  - All settings can be in this file
  - "Global" on assumption it's shared between machines. NFS, copies, etc.
- Other Shared Files
  - LOCAL_CONFIG_FILE macro
    - Comma separated, processed in order
  - You can configure a number of other shared config files:
    - Organize common settings (for example, all policy expressions)
    - platform-specific configuration files
- Local Configuration File
  - LOCAL_CONFIG_FILE macro (again)
  - Machine-specific settings
    - local policy settings for a given owner
    - different daemons to run (for example, on the Central Manager!)
- Local Configuration File
  - Can be on local disk of each machine
    - /var/adm/condor/condor_config.local
  - Can be in a shared directory
    - Usually uses $(HOSTNAME)
    - /shared/condor/condor_config.$(HOSTNAME)
    - /shared/condor/hosts/$(HOSTNAME)/condor_config.local
- Configuration File Syntax
  - # at start of line is a comment
    - not allowed in names, confuses Condor.
  - \ at the end of line is a line-continuation
    - Both lines are treated as one big entry
    - Works in comments!
```
# This comment eats the next line \
EXAMPLE_SETTING=TRUE
```
- Configuration File Macros
  - Macros have the form:
    - Attribute_Name = value
      - Names are case insensitive
      - Values are case sensitive
  - You reference other macros with:
    - A = $(B)
  - Can create additional macros for organizational purposes
  - Can append to macros:
    - ```
    A=abc
    A=$(A),def
```
- Don't let macros recursively define each other!
  - ```
  A=$(B)
  B=$(A)
```
  - Later macros in a file overwrite earlier ones
    - B will evaluate to 2:
```
A=1
B=$(A)
A=2
```
- Macros and Expressions Gotcha
  - These are simple replacement macros
  - Put parentheses around expressions
    - ```
    TEN=5+5
    HUNDRED=$(TEN)*$(TEN)
```
  - HUNDRED becomes 5+5*5+5 or 35!
- ```
TEN=(5+5)
HUNDRED=($(TEN)*$(TEN))
```
      - ((5+5)*(5+5)) = 100
ClassAds
- ClassAds
  - Set of key-value pairs
  - Values can be expressions
  - Can be matched against each other
    - Requirements and Rank
    - Which ClassAd do expressions refer to?
      - MY.name - Looks for "name" in local ClassAd
      - TARGET.name - Looks for "name" in the other ClassAd
      - Name - Looks for "name" in the local ClassAd, then the other ClassAd
  - This is old ClassAds
    - New, more expressive ClassAds exist
      - Not yet used in Condor
- ClassAd Expressions
  - Some configuration file macros specify expressions for the Machine's ClassAd
    - Notably START, RANK, SUSPEND, CONTINUE, PREEMPT, KILL
  - Can contain a mixture of macros and ClassAd references
  - Notable: UNDEFINED, ERROR
- ClassAd Expressions
  - +, -, *, /, <, <=,>, >=, ==, !=, &&, and || all work as expected
  - TRUE==1 and FALSE==0 (guaranteed)
- ClassAd Expressions: UNDEFINED and ERROR
  - Special values
  - Passed through most operators
    - Anything == UNDEFINED is UNDEFINED
  - && and || eliminate if possible.
    - UNDEFINED && FALSE is FALSE
    - UNDEFINED && TRUE is UNDEFINED
- ClassAd Expressions: =?= and =!=
  - =?= and =!= are similar to == and !=
  - =?= tests if operands have the same type and the same value.
    - 10 == UNDEFINED -> UNDEFINED
    - UNDEFINED == UNDEFINED -> UNDEFINED
    - 10 =?= UNDEFINED -> FALSE
    - UNDEFINED =?= UNDEFINED -> TRUE
  - =!= inverts =?=
- ClassAd Expressions
  - Further information: Section 4.1, "Condor's ClassAd Mechanism," in the Condor Manual.
Policy Expressions
- Policy Expressions
  - Allow machine owners to specify job priorities, restrict access, and implement local policies
  - Specified in condor_config
    - Expressions end up in the condor_startd/machine ClassAd
  - Policy evaluates both a machine ClassAd and a job ClassAd together
    - Policy can reference items in either ClassAd (See manual for list)
  - Can reference condor_config macros: $(MACRONAME)
- Machine (Startd) Policy Expression Summary
  - START - When is this machine willing to start a job
  - RANK - Job preferences
  - SUSPEND - When to suspend a job
  - CONTINUE - When to continue a suspended job
  - PREEMPT - When to nicely stop running a job
  - KILL - When to immediately kill a preempting job
- START
  - START is the primary policy
  - When FALSE the machine enters the Owner state and will not run jobs
  - Acts as the Requirements expression for the machine, the job must satisfy START
    - Can reference job ClassAd values including Owner and ImageSize
- RANK
  - Indicates which jobs a machine prefers
    - Jobs can also specify a rank
  - Floating point number
    - Larger numbers are higher ranked
    - Typically evaluate attributes in the Job ClassAd
    - Typically use + instead of &&
- RANK
  - Often used to give priority to owner of a particular group of machines
  - Claimed machines still advertise looking for higher ranked job to preempt the current job
- SUSPEND and CONTINUE
  - When SUSPEND becomes true, the job is suspended
  - When CONTINUE becomes true a suspended job is released
- PREEMPT and KILL
  - When PREEMPT becomes true, the job will be politely shut down
    - Vanilla universe jobs get SIGTERM. (The user can specify a different signal in their submit file.)
    - Standard universe jobs checkpoint
  - When KILL becomes true, the job is SIGKILL
    - Checkpointing is aborted if started
- Minimal Settings
  - Always runs jobs
    - ```
    START = True
    RANK  =
    SUSPEND  = False
    CONTINUE  = True
    PREEMPT = False
    KILL  = False
```
- Policy Configuration Example: Idle Machines
  - The Task
    - Your boss says, "I am adding nodes to the Cluster... but the Chemistry Department has priority on these nodes"
  - New Settings for the Chemistry nodes
    - Prefer Chemistry jobs
      - START = True RANK = Department == "Chemistry" SUSPEND = False CONTINUE = True PREEMPT = False KILL = False
  - Submit file with Custom Attribute
    - Prefix an entry with "+" to add to job ClassAd
      - Executable = charm-run Universe = standard +Department = Chemistry queue
  - What if "Department" not specified?
    - ```
    START = True
    RANK  = Department =!= UNDEFINED && Department == "Chemistry"
    SUSPEND = False
    CONTINUE = True
    PREEMPT = False
    KILL = False
```
- More Complex RANK
  - Give the machine's owners (adesmet and roy) highest priority, followed by the Chemistry department, followed by the Physics department, followed by everyone else.
  - We can use the automatically available Owner attribute in the job ClassAd to identify adesmet and roy.
  - ```
  IsOwner = (Owner == "adesmet" || Owner == "roy")
  IsChem =(Department =!= UNDEFINED && Department == "Chemistry")
  IsPhys =(Department =!= UNDEFINED && Department == "Physics")
  RANK = $(IsOwner)*20 + $(IsChem)*10 + $(IsPhys)

```
- Policy Configuration Example: Idle Usage
  - The Task
    - Your boss says, "The Cluster is okay, but... Condor can only use the desktops when they would otherwise be idle"
  - Defining Idle
    - One possible definition:
      - No keyboard or mouse activity for 5 minutes
      - Load average below 0.3
  - Desktops should
    - START jobs when the machine becomes idle
    - SUSPEND jobs as soon as activity is detected
    - PREEMPT jobs if the activity continues for 5 minutes or more
    - KILL jobs if they take more than 5 minutes to preempt
  - Some useful attributes
    - LoadAvg - Current load average
    - CondorLoadAvg - Current load average generated by Condor
    - KeyboardIdle - Seconds since last keyboard or mouse activity
    - CurrentTime - Current time, in Unix epoch time (seconds since midnight Jan 1, 1970)
    - EnteredCurrentActivity - When did Condor enter the current activity, in Unix epoch time
  - Macros in the Config File
    - ```
    NonCondorLoadAvg = (LoadAvg - CondorLoadAvg)
    BgndLoad = 0.3
    CPU_Busy = ($(NonCondorLoadAvg) >= $(BgndLoad))
    CPU_Idle = ($(NonCondorLoadAvg) < $(BgndLoad))
    KeyboardBusy = (KeyboardIdle < 10)
    MachineBusy = ($(CPU_Busy) || $(KeyboardBusy))
    ActivityTimer = (CurrentTime - EnteredCurrentActivity)
```
- Desktop Machine Policy
  - ```
  START = $(CPU_Idle) && KeyboardIdle > 300
  SUSPEND = $(MachineBusy)
  CONTINUE = $(CPU_Idle) && KeyboardIdle > 120
  PREEMPT = (Activity == "Suspended") && $(ActivityTimer) > 300
  KILL     = $(ActivityTimer) > 300
```
- Machine States
  - The simple picture:
- Machine Activities
  - The simple picture:
  - Within each state are various activities.
  - The flow between states is a simplication, the flow between activities is much more complex.
  - The more complex picture:
  - These ignore the new "Backfill" state.
  - See the manual for the gory details (Section 3.5: Startd Policy Configuration)
- Custom Machine Attributes
  - Can add attributes to a machine's ClassAd, typically done in the local config file
    - ```
    INSTRUCTIONAL=TRUE
    NETWORK_SPEED=100
    STARTD_EXPRS=INSTRUCTIONAL, NETWORK_SPEED
```
- Dynamic attributes are available; see STARTD_CRON_* settings in the manual
- Custom Machine Attributes
  - Jobs can now specify Rank and Requirements using new attributes:
    - Requirements = (INSTRUCTIONAL=?=UNDEFINED || INSTRUCTIONAL==FALSE)
    - Rank = NETWORK_SPEED
- Policy Review
  - Users submitting jobs can specify Requirements and Rank expressions
  - Administrators can specify Startd policy expressions individually for each machine
  - Custom attributes easily added
  - You can enforce almost any policy!
- Further Machine Policy Information
  - For further information, see section 3.5 "Startd Policy Configuration" in the Condor manual
  - condor-users mailing list
    - http://www.cs.wisc.edu/condor/mail-lists/
  - condor-admin@cs.wisc.edu
Priorities
- Job Priority
  - Set with condor_prio
  - Range from -20 to 20
    - Larger numbers are higher priority
  - Only impacts order between jobs for a single user on a single schedd
- User Priority
  - Determines allocation of machines to waiting users
  - View with condor_userprio
  - Inversely related to machines allocated
    - A user with priority of 10 will be able to claim twice as many machines as a user with priority 20
- User Priority
  - Effective User Priority is determined by multiplying two factors
    - Real Priority
    - Priority Factor
- Real Priority
  - Based on actual usage
  - Defaults to 0.5
  - Approaches actual number of machines used over time
    - Configuration setting PRIORITY_HALFLIFE
- Priority Factor
  - Assigned by administrator
    - Set with condor_userprio
  - Defaults to 1 (DEFAULT_PRIO_FACTOR)
  - Nice users default to 1,000,000 (NICE_USER_PRIO_FACTOR)
    - Used for true bottom feeding jobs
    - Add "nice_user=true" to your submit file
- Negotiator Policy Expressions
  - PREEMPTION_REQUIREMENTS and PREEMPTION_RANK
  - Evaluated when condor_negotiator considers replacing a lower priority job with a higher priority job
  - Completely unrelated to the PREEMPT expression
- PREEMPTION_REQUIREMENTS
  - If false will not preempt machine
    - Typically used to avoid pool thrashing
    - Typically use the following attributes:
      - RemoteUserPrio - Priority of user of currently running job (higher is worse)
      - SubmittorPrio - Priority of user of higher priority idle job (higher is worse)
  - Only replace jobs running for at least one hour and 20% lower priority
```
StateTimer = CurrentTime - EnteredCurrentState
HOUR = (60*60)
PREEMPTION_REQUIREMENTS = \
 $(StateTimer) > (1 * $(HOUR)) \
 && RemoteUserPrio > SubmittorPrio * 1.2
```
- PREEMPTION_RANK
  - Picks which already claimed machine to reclaim
  - Strongly prefers preempting jobs with a large (bad) priority and a small image size<
```
PREEMPTION_RANK = (RemoteUserPrio * 1000000) - ImageSize
```

Tools

condor_config_val

Find current configuration values

% condor_config_val MASTER_LOG
/var/condor/logs/MasterLog

condor_config_val -v

Can identify source

% condor_config_val -v CONDOR_HOST
CONDOR_HOST: condor.cs.wisc.edu
  Defined in '/etc/condor_config.hosts', line 6

condor_config_val -config

What configuration files are being used?

% condor_config_val -config
Config source:
        /var/home/condor/condor_config
Local config sources:
        /unsup/condor/etc/condor_config.hosts
        /unsup/condor/etc/condor_config.global
        /unsup/condor/etc/condor_config.policy
        /unsup/condor-test/etc/hosts/puffin.local

condor_fetchlog
- Retrieve logs remotely
- condor_fetchlog beak.cs.wisc.edu Master
Querying daemons condor_status
- Queries the collector for information about daemons in your pool
- Defaults to finding condor_startds
- condor_status -schedd summarizes all job queues
- condor_status -master returns list of all condor_masters
condor_status
- -long displays the full ClassAd
- Optionally specify a machine name to limit results to a single host
- condor_q -l node4.cs.wisc.edu
- condor_status -constraint
  - Only return ClassAds that match an expression you specify
  - Show me idle machines with 1GB or more memory
    - condor_status -constraint 'Memory >= 1024 && Activity == "Idle"'
- condor_status -format
  - Controls format of output
  - Useful for writing scripts
  - Uses C printf style formats
    - One field per argument
  - Census of systems in your pool:
```
% condor_status -format '%s ' Arch -format '%s\n' OpSys | sort | uniq -c
797 INTEL LINUX
118 INTEL WINNT50
108 SUN4u SOLARIS28
  6 SUN4x SOLARIS28
```

Examining Queues condor_q

View the job queue
The "-long" option is useful to see the entire ClassAd for a given job
supports -constraint and -format
Can view job queues on remote machines with the "-name" option

condor_q -format

Census of jobs per user

% condor_q -format '%8s ' Owner -format '%s\n' Cmd | sort | uniq -c
64 adesmet /scratch/submit/a.out
 2 adesmet /home/bin/run_events
 4   smith /nfs/sim1/em2d3d
 4   smith /nfs/sim2/em2d3d

condor_q -analyze

condor_q will try to figure out why the job isn't running
Good at determining that no machine matches the job Requirements expressions

Typical results:

% condor_q -analyze 471216
471216.000:  Run analysis summary.  Of 820 machines,
    458 are rejected by your job's requirements
     25 reject your job because of their own requirements
      0 match, but are serving users with a better priority in the pool
      4 match, but reject the job for unknown reasons
      6 match, but will not currently preempt their existing job
    327 are available to run your job
        Last successful match: Sun Apr 27 14:32:07 2008

condor_q -better-analyze

Only available on some platforms. Is available on Linux
Breaks down the job's requirements and suggests modifications

Typical results:

-- Submitter: beak.cs.wisc.edu : <128.105.146.14:13006> : beak.cs.wisc.edu
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
---
633419.000:  Run analysis summary.  Of 1016 machines,
   1016 are rejected by your job's requirements

WARNING:  Be advised:
   No machines matched job's requirements


The Requirements expression for your job is:

( ( target.Arch == "SUN4u" ) && ( target.OpSys == "WINNT50" ) &&
( target.Disk > 1000000000 ) && ( target.Memory > 10000 ) ) &&
( ( target.CkptArch == target.Arch ) || ( target.CkptArch is undefined ) ) &&
( ( target.CkptOpSys == target.OpSys ) || ( target.CkptOpSys is undefined ) )

Condition                         Machines Matched    Suggestion
---------                         ----------------    ----------
1   ( target.Disk > 1000000000 )      0                   MODIFY TO 14223199
2   ( target.Memory > 10000 )         0                   MODIFY TO 2047
3   ( target.Arch == "SUN4u" )        101
4   ( target.OpSys == "WINNT50" )     117                 MODIFY TO "SOLARIS28"
5   ( ( target.CkptArch == target.Arch ) || ( target.CkptArch is undefined ) )
                                  1016
6   ( ( target.CkptOpSys == target.OpSys ) || ( target.CkptOpSys is undefined )
)
                                  1016

Conflicts:

  conditions: 3, 4

Condor's Log Files
- Condor maintains one log file per daemon
- Can increase verbosity of logs on a per daemon basis
  - SHADOW_DEBUG, SCHEDD_DEBUG, and others
  - Space separated list
  - Useful Debug Levels
    - D_FULLDEBUG dramatically increases information logged
      - Does not include other debug levels!
    - D_COMMAND adds information about about commands received
      - SHADOW_DEBUG= \ D_FULLDEBUG D_COMMAND
- Log files are automatically rolled over when a size limit is reached
  - Only one old version is kept
  - Defaults to 1,000,000 bytes
  - Rolls over quickly with D_FULLDEBUG
  - MAX_*_LOG, one setting per daemon
    - MAX_SHADOW_LOG, MAX_SCHEDD_LOG, and others
- Many log files entries primarily useful to Condor developers
  - Especially if D_FULLDEBUG is on
  - Minor errors are often logged but corrected
  - Not all messages are serious
  - condor-admin@cs.wisc.edu can help
Debugging Jobs
- Common administrator task: help a user debug a job.
  - Typical case: Why won't my job run?
- condor_q
  - Examine the job with condor_q
    - especially -long and -analyze
    - Compare with condor_status -long
- User Log
  - Examine the job's user log
    - Quickly find with:
  - condor_q -format '%s\n' UserLog 17.0
    - Users should always have a user log (set with "log" in the submit file)
  - Contains the life history of the job
  - If a problem occurred, user log often contains details
  - Error messages for common problems are much improved in 6.6
- ShadowLog
  - Examine ShadowLog on the submit machine
    - Note any machines the job tried to execute on
    - There is often an "ERROR" entry that can give a good indication of what failed
- Matching Problems
  - No ShadowLog entries? Possible problem matching the job.
    - Examine ScheddLog on the submit machine
    - Examine NegotiatorLog on the central manager
- Local Problems
  - ShadowLog entries suggest an error but aren't specific?
    - Examine StartLog and StarterLog on the execute machine
- Reading Log Files
  - Condor logs will note the job ID each entry is for
    - Useful if multiple jobs are being processed simultaneously
    - grepping for the job ID will make it easy to find relevent entries
- What Next?
  - If necessary add "D_FULLDEBUG D_COMMAND" to DEBUG_DAEMONNAME setting for additional log information
  - Increase MAX_DAEMONNAME_LOG if logs are rolling over too quickly
  - If all else fails, email us at condor-admin@cs.wisc.edu
Security
- Old Condor Security
  - Security is entirely based on IP addresses and host names
    - Very course grained
  - No encryption or integrity checking
  - HOSTALLOW_* and HOSTDENY_*
  - Not recommended
  - Minimal Security Settings
    - You must set HOSTALLOW_WRITE, or nothing works
    - Simplest setting: Extremely insecure! HOSTALLOW_WRITE=*
    - A bit better: HOSTALLOW_WRITE=*.cs.wisc.edu
- New Condor Security
  - Strong authentication of users and daemons
  - Encryption over the network
  - Integrity checking over the network
  - ALLOW_* and DENY_* expressions
  - You need to turn the advanced security features on:
```
SEC_DEFAULT_AUTHENTICATION = REQUIRED
SEC_DEFAULT_ENCRYPTION     = REQUIRED
SEC_DEFAULT_INTEGRITY      = REQUIRED
```
    - Can set on a per security level basis, see the manual.
  - Security Levels (a subset)
    - READ: querying information
      - condor_status, condor_q, etc
    - WRITE: updating information
      - condor_submit, adding nodes to a pool, sending ClassAds to the collector, etc
      - Includes READ
    - ADMINISTRATOR: Administrative commands
      - condor_on, condor_off, condor_reconfig, condor_restart, etc.
      - Includes READ and WRITE
      - Security Levels
    - DAEMON: Daemon to daemon communications
      - Includes READ and WRITE
    - NEGOTIATOR: condor_negotiator to other daemons
      - Includes READ
  - Specifying User Identities
    - Canonical form (shortcuts exist): username@domain.com/hostname.com
      - adesmet@cs.wisc.edu/puffin.cs.wisc.edu
    - Can use * wildcard
    - Hostname can be hostname or IP address with optional netmask
      - 192.168.12.1/255.255.192.0
      - 192.168.12.1/18
  - Setting Up Security
    - List who you ALLOW access to
      - ALLOW_WRITE=...
      - If not ALLOWed, then defaults to DENY access
    - Can also DENY people
      - DENY_WRITE=...
      - Warning: If you set DENY_* but not a matching ALLOW_* expression, access defaults to ALLOW.
    - Can define values that effect all daemons: ALLOW_WRITE, DENY_READ, ALLOW_ADMINISTRATOR, etc.
    - Can define daemon-specific settings: ALLOW_READ_SCHEDD, DENY_WRITE_COLLECTOR, etc.
  - Example Filters
    - Allow anyone from wisc.edu: ALLOW_READ=*@wisc.edu/*.wisc.edu
    - Allow any authenticated local user: ALLOW_READ=*/*.wisc.edu
    - Allow specific user/machine: ALLOW_NEGOTIATOR= daemon@wisc.edu/condor.wisc.edu
  - AUTHENTICATION_METHODS
    - How to authenticate users and daemons?
    - FS - Local file system
    - SSL - Public key encryption
    - PASSWORD - Shared secret
    - ANONYMOUS
    - NTSSPI - Microsoft Windows
    - Kerberos
    - GSI - Globus/Grid Security Infrastructure
    - CLAIMTOBE - Insecure
    - FS_REMOTE - Network file system
  - Some AUTHENTICATION_METHODS in detail
    - FS: File System
      - Checks that the user can create a directory owned by the user.
      - Only works on local machine
      - Assumes filesystem is trustworthy
      - Everyone should use
      - It just works!
    - PASSWORD
      - Shared secret encryption file
      - Only suitable for daemon-to-daemon communications
      - Simple
    - SSL
      - Public key encryption system
      - Daemons and users have X.509 certificates
      - All Condor daemons in pool can share one certificate
      - Map file transforms X.509 distinguished name into an identity
      - You'll need to create this map file. See "3.6.4 The Unified Map File for Authentication" in the manual.
    - NTSSPI
      - Microsoft Windows
      - Only works on Windows
      - Insecure encryption and integrity checks
    - ANONYMOUS
      - A sort of "guest" user
      - Authenticates as CONDOR_ANONYMOUS_USER
      - Insecure encryption and integrity checks
    - Kerberos and GSI
      - Complex to set up
      - Useful if you already use one of these systems
  - Example Security Configuration
    - Goals
      - Use SSL authentication for between machine connections
      - Use SSL or FS authentication on a single machine
    - Configuration:
```
# Turn on all security:
SEC_DEFAULT_AUTHENTICATION=REQUIRED
SEC_DEFAULT_ENCRYPTION=REQUIRED
SEC_DEFAULT_INTEGRITY=REQUIRED

# Require authentication
SEC_DEFAULT_AUTHENTICATION_METHODS = FS, SSL
# SSL requires giving your daemons an X.509 certificates
# You will also need a map file

ALLOW_READ = *
ALLOW_WRITE= *@wisc.edu/*.wisc.edu
DENY_WRITE = abuser@*.wisc.edu/*
ALLOW_ADMINISTRATOR = admin@wisc.edu/*.wisc.edu, *@wisc.edu/$(CONDOR_HOST)
ALLOW_DAEMON = daemon@wisc.edu/*.wisc.edu
ALLOW_NEGOTIATOR = daemon@wisc.edu/$(CONDOR_HOST)
```
    - New goal: Support users without X.509 certificates
      - Using FS authentication users can submit jobs and check the local queue
      - condor_q -analyze and condor_status won't work for normal users without an X.509 certificate. Requires READ access to condor_collector
      - How to let anyone read any daemon? ANONYMOUS authentication
    - Changes to configuration:
      - Allow Any User Read Access
        SEC_READ_AUTHENTIATION_METHODS = FS, SSL, ANONYMOUS
      - The "ALLOW_READ = *" handles the rest. We could more explicitly match against "CONDOR_ANONYMOUS_USER/*" if we wanted.
- More on Security
  - Chapter 3.6, "Security," in the Condor Manual
  - condor-admin@cs.wisc.edu
  - Capture the wily Zach Miller
More Information
- - Condor staff here at Condor week
  - Condor Manual
  - Condor Web Site
  - condor-users mailing list (http://www.cs.wisc.edu/condor/mail-lists/)
  - condor-admin@cs.wisc.edu
